Palmer | PAN01 | Passive DI Box | Mono
Ā

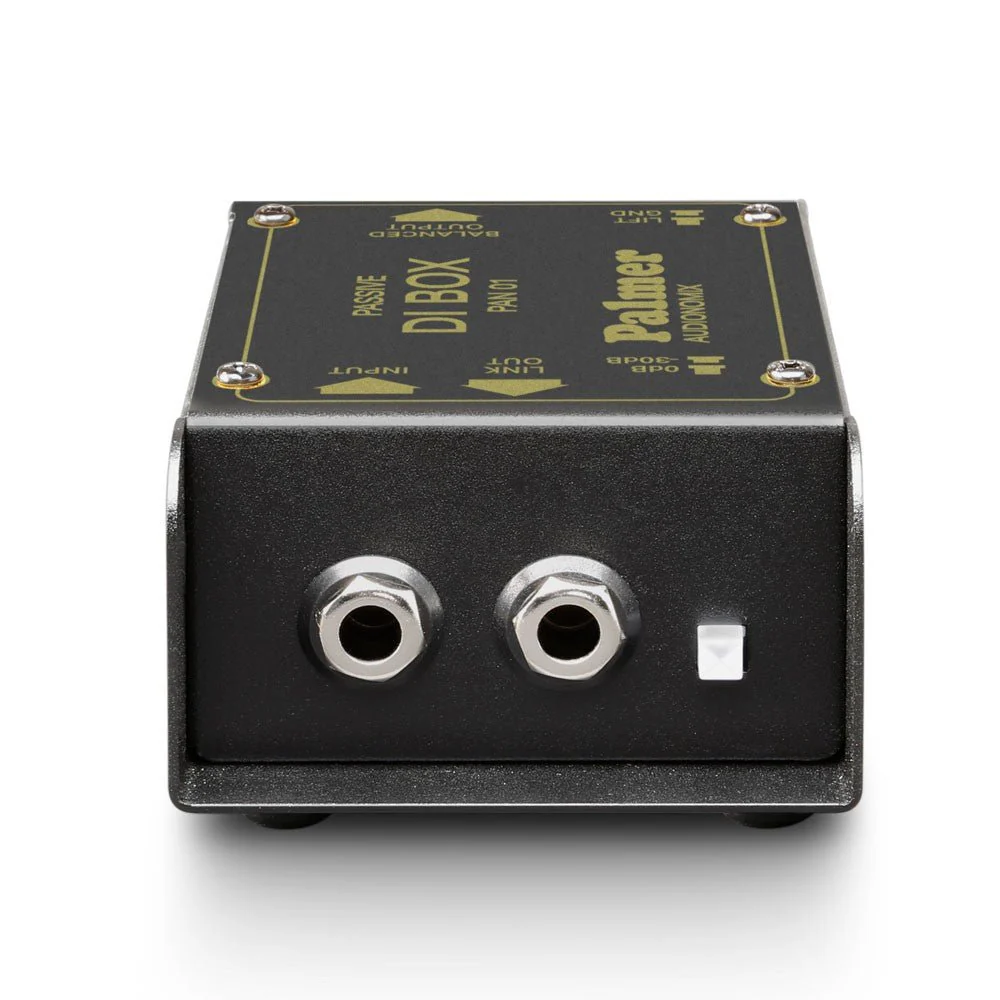

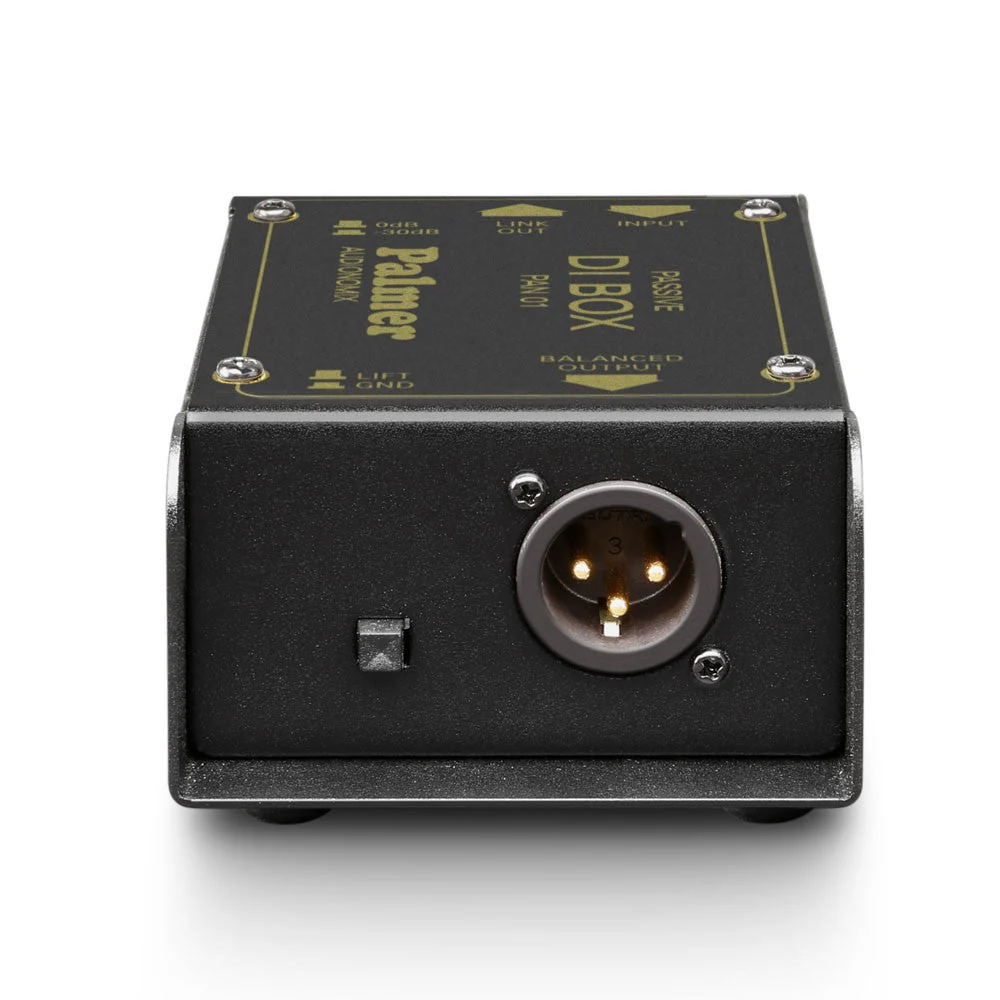

PAN 01 DI Box passive

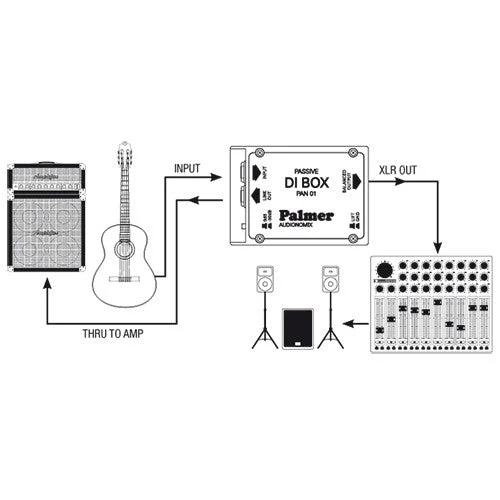

Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
Ā
Specifications
| Product type | DI Boxes |
| Type | passive |
| Channels | 1 |
| Inputs | 1 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 54 dBu |
| Input impedance | (@ 60 Hz) 60k Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 1 |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack , XLR |
| Max. output level | + 4 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 20 - 20000 Hz |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Controls | attenuator , ground lift |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 110 mm |
| Depth | 73 mm |
| Height | 42 mm |
| Weight | 0,34 kg |
$52.29
