Palmer | PAN02 | Active DI Box | Mono
PAN 02 DI Box active
Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.
| Product type | DI Boxes |
| Type | active |
| Channels | 1 |
| Inputs | 1 |

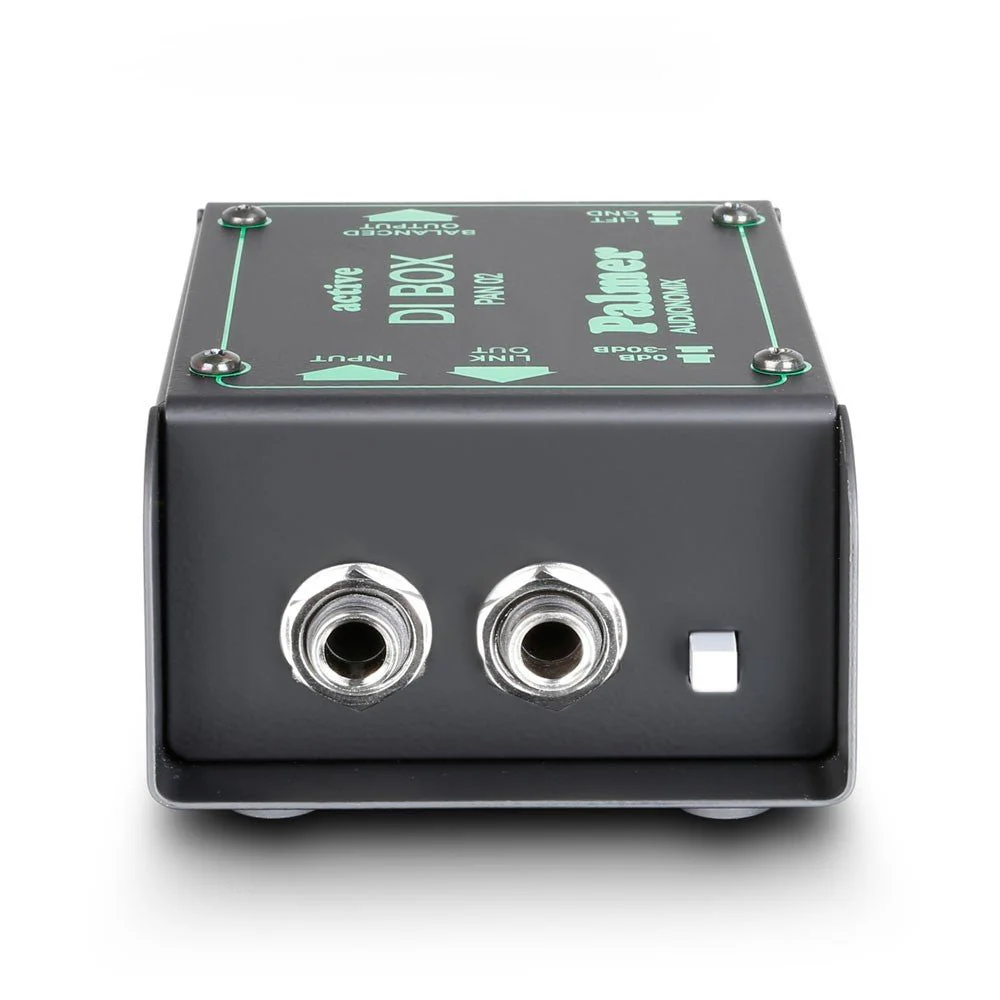

| Input connectors | 6.3 mm jack |
| Max. input level | + 45 dBu |
| Input impedance | (@ 60 Hz) 1 M Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 1 |
| THRU outputs/channel | 1 |

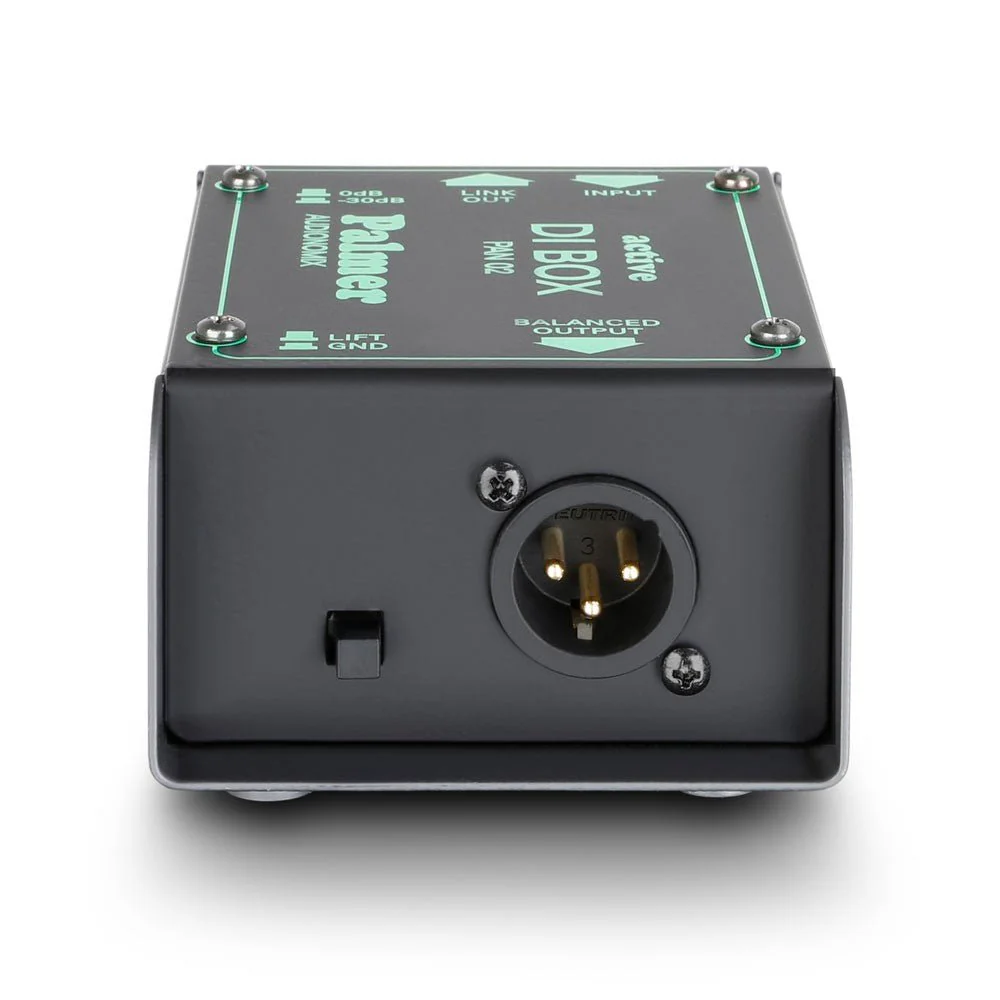

| Output connectors | 6.3 mm jack , XLR |
| Max. output level | + 10 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 10 - 20000 Hz |
| Transformer balanced | Yes |
| Ratio | 1 : 1 |
| Controls | attenuator , ground lift |
| Operating voltage | +48 V phantom power , 9 V block |
| Power consumption | 3.8 mA (9V) , 4 mA (48V) |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 110 mm |
| Depth | 73 mm |
| Height | 42 mm |
| Weight | 0,353 kg |
